We are occupied in providing a high-class assortment of Milling Machine to our esteemed clienteles. Our offered products are made at our vendors manufacturing unit using the finest quality of raw material and advanced technology. These products are made under the direction of experts in line with business standards. Our offered products are available with us at very low prices

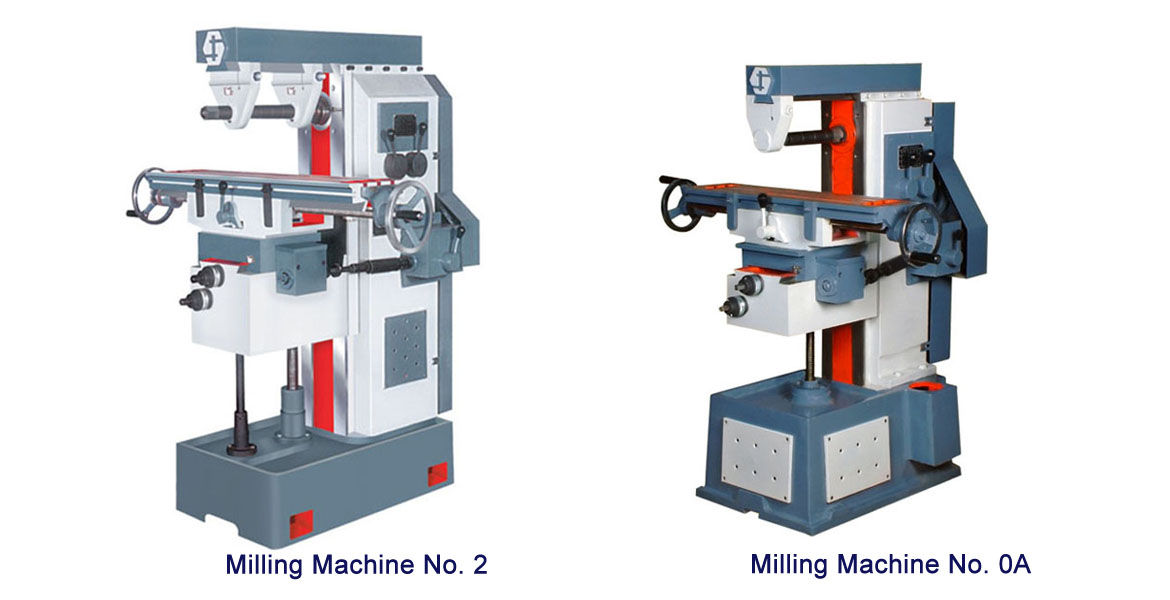

Sunrise Industries has come out with horizontal and universal type milling machine for precise and quick production of small and large components.
The machine has six spindles speeds and 3 feeds .The machine have automatic feeding arrangement in longitudinal. Table in both direction. The vertical and table movements are hand operated.
The machine is constructed with Grade 1 Casting. Spindles, Shafts,Arbor,Screws,Gears and Spacer are made from Alloy Steel. Spindle Gear Box is oil bath lubricated.
| SPECIFICATIONS | |
| Working Surface | 1050*250mm |
| Number of T-Slots | 3 |
| Width of T-Slots | 15mm |
| Pitch of T-Slots | 62mm |
| Maximum Distance from Spindle Centre to underside of over Support | 125mm |
| MOVEMENTS | |
| Longitudinal Movement of the table by Lever /Screw | 600mm |
| Cross Movement of the Table by Screw | 230mm |
| vertical Movement of the Table by Screw | 450mm |
| MILLING SPINDLE | |
| Spindle Bore | 17mm |
| Inside Taper | ISO-40 |
| Arbor | 25.4mm |
| REVOLUTION OF MILLING SPINDLE | |
| Number of Spindle Speed | 6 |
| Range of Spindle Speed | 50,85,110,240,350,525 RPM |
| Number of Feeds | 3 Feeds(0.9,1.4,2.25 per Minute) |
| ELECTRICAL | |
| Main Drive Electric Motor | 2 HP,1440RPM,440v.3 Phase |
| Coolant Motor | 0.11KW 2700 RPM |
| OTHER DIMENSIONS | |
| Floor Space | 550*925mm |
| Height | 1500mm |
| Coolant Tank Capacity | 20 Ltr. |
