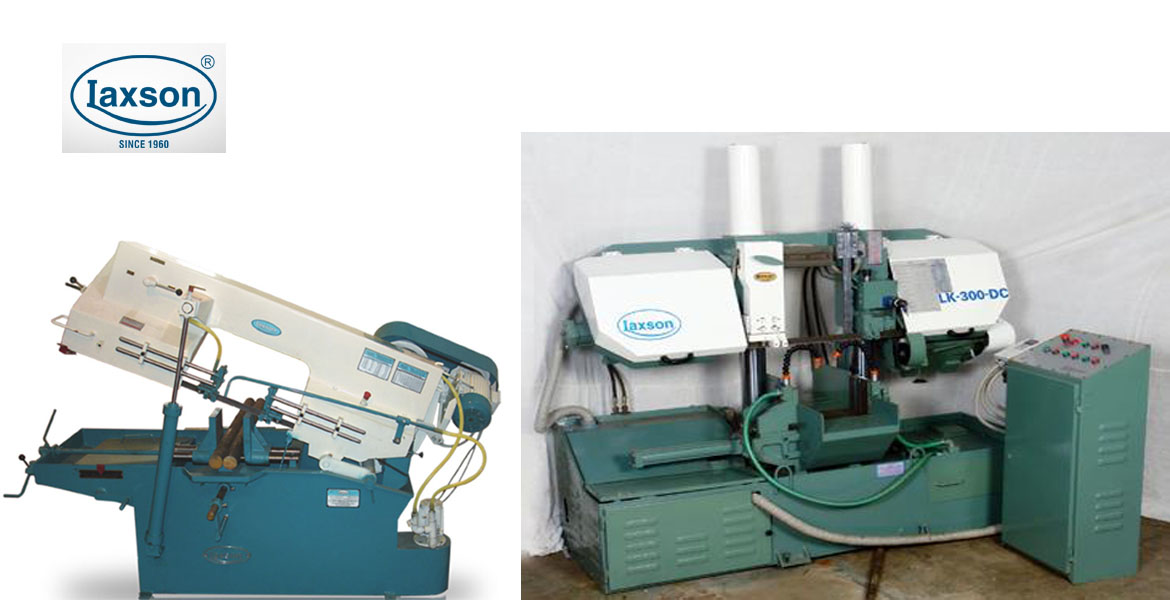

BANDSAW:
LAXSON
In order to cater to the demands of our honored patrons, we are affianced in offering first-class quality spectrum of Band Saws. Our offered products are made-up using optimal-quality raw material in tandem with the prevailing industrial quality and norms guidelines. These products are quality-assured by personnel inspectors before dispatch to certify optimal performance at patrons end.
| MODEL | LK-1 CS | LK-1 HS* | LK-2 HS | LK-3 HS | LK-4 HS** | ||
| CUTTING CAPACITY Round | mm | 175 | 175 | 300 | 350 | 400 | |
| Square | mm | 175*175 | 175*175 | 250*250 | 350*350 | 350*350 | |
| Rectangle | mm | 200*150 | 200*150 | 300*250 | 350*350 | 450*350 | |
| Blade Dimensions | mm | 25408*20*0.9 | 3000*27*0.9 | 3760*27*0.9 | 4100*34*1.1 | 4420*34*1.1 | |
| Power Req.Saw Drive | Kw./h.p. | 0.37/0.5 1440RPM | 0.75/1.0 1440 RPM | 1.5/2.0 1000 RPM | 1.5/2.0 1000 RPM | 1.5/2.0 1000 RPM | |
| Power Req.Coolant Pump | Kw./h.p. | 0.12/0.16 2800 RPM | 0.12/0.16 2800 RPM | 0.12/0.16 2800 RPM | 0.12/0.16 2800 RPM | 0.12/0.16 2800 RPM | |
| Blade Linear Speed | mtr./min. | 25-30-40 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | |
| Dimensions (lxwxh) | mtr. | 1.5*0.6*0.9 | 1.7*0.6*0.9 | 2.4*0.9*1.1 | 2.6*0.9*1.1 | 2.7*0.9*1.2 | |
| Net Weight | K.g. | 270 | 320 | 760 | 820 | 900 | |
| Packed Weight | K.g. | 380 | 430 | 860 | 920 | 1180 | |
