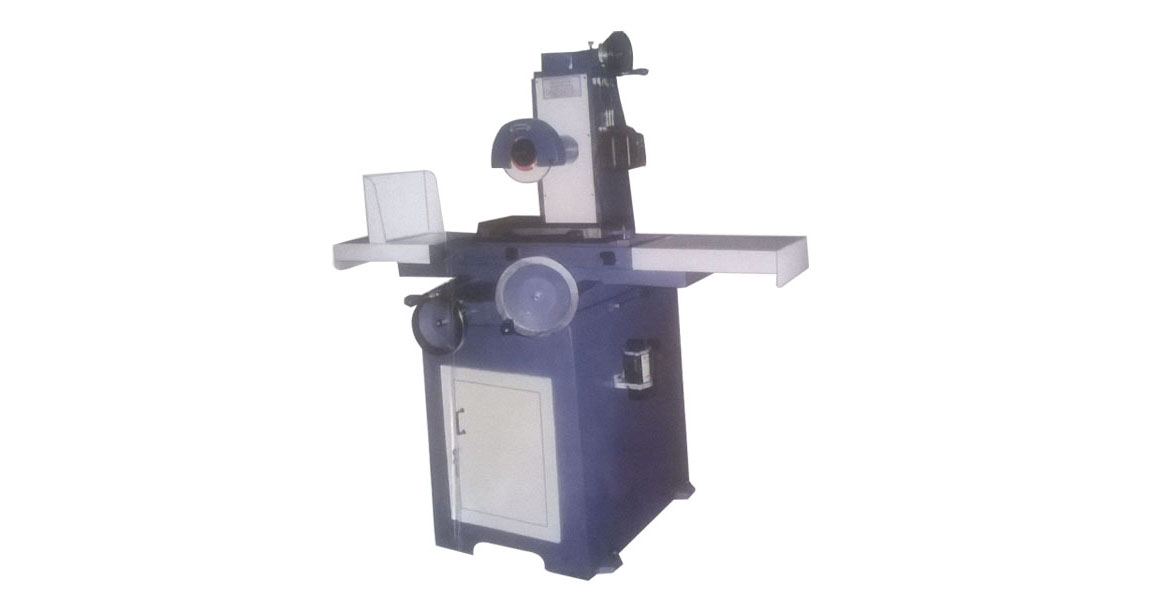

SURFACE GRINDER:
RAMANNA
Ramana have developed different size of surface Grinders with total Quality control& modern techniques plus sophisticated technical features. Our Machine ensures absolutely vibration free for noiseless operations. Accuracy on the machine is guaranteed and all controls of the Machine are with in the easy reach of the machine operator.
Leveraging on the expertise of the professionals with vast experience, we are able to manufacture Surface Grinders. These grinders are well known for their characteristics like high performance, stability, corrosion resistance and much more. The client get these grinders customized in accordance to their production requirements.
| Specifications | |||||
| Working Surface of the table | 175*350mm | 225*350mm | 225*450mm | 225*500mm | |
| Maximum height from table to Grinding Wheel | 275mm | 275mm | 275mm | 275mm | |
| Vertical Feed Gradution | 0.01mm | 0.01mm | 0.01mm | .002mm | |
| Cross Feed Gradution | 0.05mm | 0.05mm | 0.05mm | 0.05mm | |
| Spindle Speed | 2800R.P.M | 2800R.P.M | 2800R.P.M | 2800R.P.M | |
| Size of Grinding Wheel(Dia x Width x Bore) | 175*13*31.75mm | 200*13*31.75mm | 200*13*31.75mm | 200*13*31.75mm | |
| Magnetic Chuck recommended | 150*300mm | 200*300mm | 200*450mm | 200*450mm | |
| Electric Motor Recommended | 0.5K.w.3 Phase 3/4 HP 2800RPM | .75K.w.3 Phase 1 HP 2800RPM | .75K.w.3 Phase 1 HP 2800RPM | 1.5K.w.3 Phase 2 HP 2800RPM | |
| Diamond Dresser. | 0.5cr. | 0.5cr. | 0.5cr. | 0.5cr. | |
| Wheel Balancing Stand recommended. | one | one | one | one | |
